Destinations

Destinations allow you to route log events to external storage systems and databases. By default, all events are automatically stored in ClickHouse for querying and analysis. You can configure additional destinations to send events to object storage (S3, R2, GCS, Azure) or custom ClickHouse instances for backup, archival, or custom workflows.

Destination Types

ClickHouse

ClickHouse destinations store events in a ClickHouse database for real-time querying, analysis, and all RunReveal features. You can configure multiple ClickHouse destinations, with one marked as the default.

Use cases:

• Primary data storage for querying and analysis
• Custom ClickHouse instances for specific workflows
• Data replication across multiple databases

Object Storage (S3, R2, GCS, Azure)

Object storage destinations write events to cloud storage buckets for archival, backup, and long-term retention.

Supported providers:

• Amazon S3: Write logs to S3 buckets
• Cloudflare R2: Write logs to R2 buckets
• Google Cloud Storage: Write logs to GCS buckets
• Azure Blob Storage: Write logs to Azure storage containers

Use cases:

• Long-term archival of log data
• Backup and disaster recovery
• Compliance and retention requirements
• Cost-effective storage for historical data

Configuration

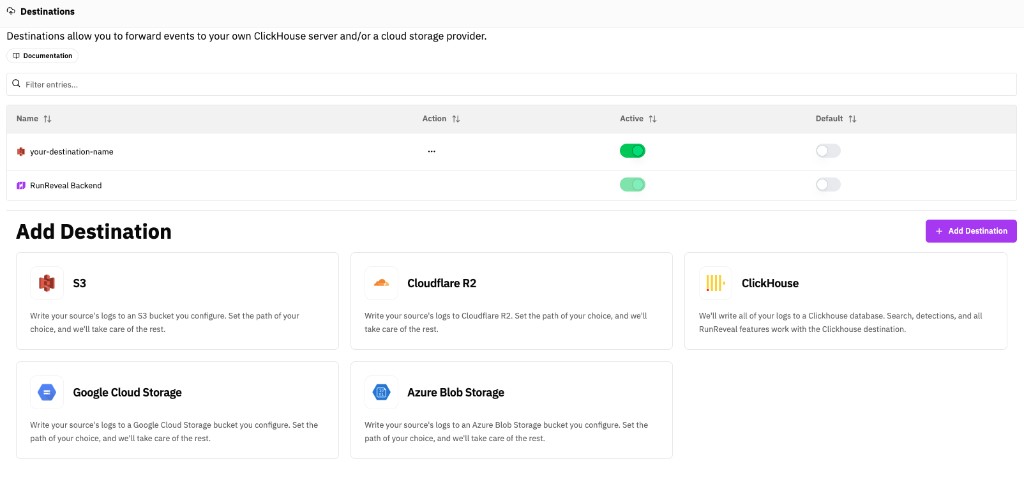

Destinations are configured in the RunReveal UI under Destinations. Each destination requires:

• Name: A unique identifier for the destination
• Type: ClickHouse or object storage provider
• Settings: Type-specific configuration (connection details, bucket names, paths, etc.)
• Credentials: Authentication information (stored securely)

ClickHouse Configuration

• Host: ClickHouse server address
• Port: ClickHouse server port
• Database: Target database name
• Credentials: Username and password, or SPIFFE/mTLS authentication
• Default destination: Mark as default (only one can be default)

SPIFFE/mTLS Authentication

For enhanced security, ClickHouse destinations can use SPIFFE-based mTLS authentication instead of username/password credentials. This enables certificate-based authentication with automatic certificate rotation.

Benefits:

• No password management required
• Automatic certificate rotation
• Stronger authentication through mutual TLS
• Integration with SPIFFE/SPIRE identity systems

To enable SPIFFE authentication for a destination:

1. Toggle the Use SPIFFE Authentication option when creating or editing a ClickHouse destination
2. Ensure the ClickHouse server is configured to accept certificate-based authentication
3. The username field specifies which ClickHouse user to authenticate as (sent via the X-ClickHouse-User header)

Object Storage Configuration

• Provider: S3, R2, GCS, or Azure
• Bucket/Container: Storage bucket or container name
• Path: Optional path prefix for organizing events
• Credentials: Provider-specific authentication (access keys, service accounts, etc.)

Related Documentation

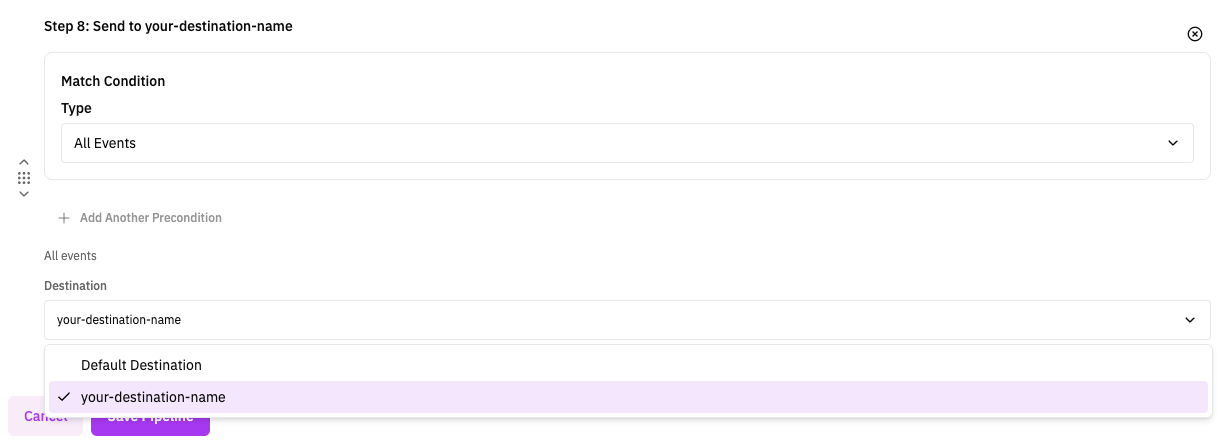

• Pipelines - Learn how to route events to destinations using pipeline steps
